fpoirotte\Cryptal\DefaultAlgorithms\Umac Class Reference

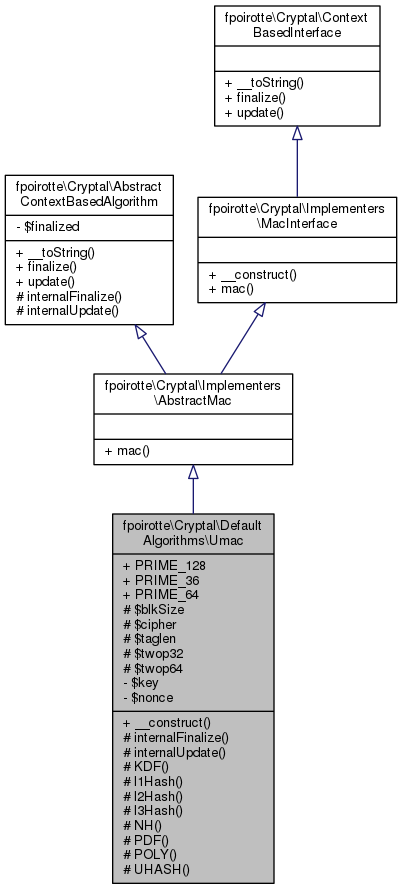

Inheritance diagram for fpoirotte\Cryptal\DefaultAlgorithms\Umac:

Public Member Functions
	__construct (MacEnum $macAlgorithm, SubAlgorithmAbstractEnum $innerAlgorithm, $key, $nonce= '')
Public Member Functions inherited from fpoirotte\Cryptal\AbstractContextBasedAlgorithm
	__toString ()
	finalize ($raw=false)
	update ($data)
Public Member Functions inherited from fpoirotte\Cryptal\ContextBasedInterface
	__toString ()
	finalize ($raw=false)
	update ($data)

Public Attributes
const	PRIME_128 = '0xFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF61'
	128-bits prime number, in hexadecimal notation.
const	PRIME_36 = '0x0000000FFFFFFFFB'
	36-bits prime number, in hexadecimal notation.
const	PRIME_64 = '0xFFFFFFFFFFFFFFC5'
	64-bits prime number, in hexadecimal notation.

Protected Member Functions
	internalFinalize ()
	internalUpdate ($data)
	KDF ($index, $numbytes)
	l1Hash ($k, $m)
	l2Hash ($k, $m)
	l3Hash ($k1, $k2, $m)
	NH ($k_i, $m, $len)
	PDF ($nonce)
	POLY ($wordbits, $maxwordrange, $k, $m)
	UHASH ($m)
Protected Member Functions inherited from fpoirotte\Cryptal\AbstractContextBasedAlgorithm
	internalFinalize ()
	internalUpdate ($data)

Protected Attributes
	$blkSize
	Block size for the cipher.
	$cipher
	Cipher algorithm used to encrypt data.
	$taglen
	Length of tags generated by this instance.

Static Protected Attributes
static	$twop32
	= 2**32
static	$twop64
	= 2**64

Private Attributes
	$key
	Secret key.
	$nonce
	Nonce.

Additional Inherited Members
Static Public Member Functions inherited from fpoirotte\Cryptal\Implementers\AbstractMac
static	mac (MacEnum $macAlgorithm, SubAlgorithmAbstractEnum $innerAlgorithm, $key, $data, $nonce= '', $raw=false)

Detailed Description

Message authentication code based on universal hashing.

Definition at line 18 of file Umac.php.

Constructor & Destructor Documentation

fpoirotte\Cryptal\DefaultAlgorithms\Umac::__construct	(	MacEnum	$macAlgorithm,
		SubAlgorithmAbstractEnum	$innerAlgorithm,
			$key,
			$nonce = ''
	)

Construct a new context to generate a Message Authentication Code.

Parameters

MacEnum	$macAlgorithm	Algorithm to use to produce the message authentication code.
SubAlgorithmAbstractEnum	$innerAlgorithm	Inner algorithm used during generation. This should be either an instance of CipherEnum or MacEnum, depending on the value for the $macAlgorithm parameter.

Warning

For MAC algorithms that use ciphers, the cipher must be configured to use the Electronic Codebook (ECB) mode. Other modes of operations will result in garbage output.

Parameters

string	$key	Secret key used to produce the Message Authentication Code.
string	$nonce	(optional) Nonce used to randomize the output.

Note

Not all MAC algorithms make use of this parameter.

Implements fpoirotte\Cryptal\Implementers\MacInterface.

Definition at line 50 of file Umac.php.

References fpoirotte\Cryptal\DefaultAlgorithms\Umac\$blkSize, fpoirotte\Cryptal\DefaultAlgorithms\Umac\$cipher, fpoirotte\Cryptal\DefaultAlgorithms\Umac\$key, fpoirotte\Cryptal\DefaultAlgorithms\Umac\$nonce, and fpoirotte\Cryptal\DefaultAlgorithms\Umac\$taglen.

---

The documentation for this class was generated from the following file:

• src/Cryptal/DefaultAlgorithms/Umac.php
