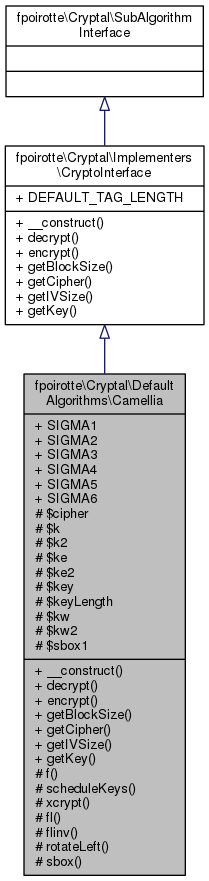

Inheritance diagram for fpoirotte\Cryptal\DefaultAlgorithms\Camellia:

Public Member Functions
	__construct (CipherEnum $cipher, ModeEnum $mode, PaddingInterface $padding, $key, $tagLength=self::DEFAULT_TAG_LENGTH)

	decrypt ($iv, $data, $tag=null, $aad= '')

	encrypt ($iv, $data, &$tag=null, $aad= '')

	getBlockSize ()

	getCipher ()

	getIVSize ()

	getKey ()

Public Attributes
const	SIGMA1 = "\xA0\x9E\x66\x7F\x3B\xCC\x90\x8B"
	Sigma1 constant (from the RFC)

const	SIGMA2 = "\xB6\x7A\xE8\x58\x4C\xAA\x73\xB2"
	Sigma2 constant (from the RFC)

const	SIGMA3 = "\xC6\xEF\x37\x2F\xE9\x4F\x82\xBE"
	Sigma3 constant (from the RFC)

const	SIGMA4 = "\x54\xFF\x53\xA5\xF1\xD3\x6F\x1C"
	Sigma4 constant (from the RFC)

const	SIGMA5 = "\x10\xE5\x27\xFA\xDE\x68\x2D\x1D"
	Sigma5 constant (from the RFC)

const	SIGMA6 = "\xB0\x56\x88\xC2\xB3\xE6\xC1\xFD"
	Sigma6 constant (from the RFC)

Public Attributes inherited from fpoirotte\Cryptal\Implementers\CryptoInterface
const	DEFAULT_TAG_LENGTH = 16

Protected Member Functions
	f ($F_IN, $KE)

	scheduleKeys ($key)

	xcrypt ($m, array $k, array $ke, array $kw)

Static Protected Member Functions
static	fl ($FL_IN, $KE)

static	flinv ($FLINV_IN, $KE)

static	rotateLeft ($value, $n)

static	sbox ($n, $x)

Protected Attributes
	$cipher

	$k
	Subkeys used for encryption.

	$k2
	Subkeys used for decryption.

	$ke
	Subkeys used by the Feistel structure during encryption.

	$ke2
	Subkeys used by the Feistel structure during decryption.

	$key

	$keyLength
	Original key length in bits (128, 192 or 256)

	$kw
	Subkeys used for whitening during encryption.

	$kw2
	Subkeys used for whitening during decryption.

Static Protected Attributes
static	$sbox1 = null
	Character string containing the whole sbox1 crypto-box.

Detailed Description

Camellia cipher (RFC 3713).

See also: https://tools.ietf.org/html/rfc3713

Definition at line 20 of file Camellia.php.

Constructor & Destructor Documentation

fpoirotte\Cryptal\DefaultAlgorithms\Camellia::__construct	(	CipherEnum	$cipher,
		ModeEnum	$mode,
		PaddingInterface	$padding,
			$key,
			$tagLength = `self::DEFAULT_TAG_LENGTH`
	)

Construct a new encryption/decryption context.

Parameters

CipherEnum	$cipher	Cipher algorithm to use.
ModeEnum	$mode	Cryptography mode to apply to the cipher.
PaddingInterface	$padding	Padding scheme to use.
string	$key	Secret key used for encryption/decryption.
int	$tagLength	Length (in bytes) of the authentication tags to generate.

Note: The $tagLength parameter is unused unless the supplied mode supports Authenticated Encryption with Additional Data (AEAD).

Implements fpoirotte\Cryptal\Implementers\CryptoInterface.

Definition at line 67 of file Camellia.php.

References fpoirotte\Cryptal\DefaultAlgorithms\Camellia\scheduleKeys().

Member Function Documentation

fpoirotte\Cryptal\DefaultAlgorithms\Camellia::decrypt	(	$iv,
		$data,
		$tag = `null`,
		$aad = `''`
	)

Decrypt some data.

Parameters

string	$iv	Initialization Vector for the operation.
string	$data	Data to decrypt.
string	$tag	Authentication tag.
string	$aad	Additional authenticated data.

Return values

string Plaintext (decrypted data).

Note: The $iv parameter is unused for some modes of operations (namely MODE_ECB). Still, this parameter is mandatory and an empty string may be passed for those modes.; An exception is thrown in case decryption fails, or the given authentication tag is incorrect (AEAD-only).; The $aad & $tag parameters are unused unless the required mode supports Authenticated Encryption with Additional Data (AEAD). MODE_GCM & MODE_EAX are known to support AEAD.

Implements fpoirotte\Cryptal\Implementers\CryptoInterface.

Definition at line 456 of file Camellia.php.

References fpoirotte\Cryptal\DefaultAlgorithms\Camellia\getBlockSize(), and fpoirotte\Cryptal\DefaultAlgorithms\Camellia\xcrypt().

fpoirotte\Cryptal\DefaultAlgorithms\Camellia::encrypt	(		$iv,
			$data,
		&	$tag = `null`,
			$aad = `''`
	)

Encrypt some data.

Parameters

string	$iv	Initialization Vector for the operation.
string	$data	Data to encrypt.
string	$tag	Variable where the generated tag will be stored.
string	$aad	Additional authenticated data.

Return values

string Ciphertext (encrypted data).

Note: The $iv parameter is unused for some modes of operations (namely MODE_ECB). Still, this parameter is mandatory and an empty string may be passed for those modes.; An exception is thrown in case encryption fails.; The $aad & $tag parameters are unused unless the required mode supports Authenticated Encryption with Additional Data (AEAD). MODE_GCM & MODE_EAX are known to support AEAD.

Implements fpoirotte\Cryptal\Implementers\CryptoInterface.

Definition at line 442 of file Camellia.php.

References fpoirotte\Cryptal\DefaultAlgorithms\Camellia\getBlockSize(), and fpoirotte\Cryptal\DefaultAlgorithms\Camellia\xcrypt().

fpoirotte\Cryptal\DefaultAlgorithms\Camellia::f	(	$F_IN,
		$KE
	)

protected

F-function (per RFC 3713)

Parameters

string	$F_IN	64-bit input data for the function
string	$KE	64-bit subkey

Return values

string 64-bit output data

Definition at line 311 of file Camellia.php.

static fpoirotte\Cryptal\DefaultAlgorithms\Camellia::fl	(	$FL_IN,
		$KE
	)

staticprotected

Feistel function (per RFC 3713)

Parameters

string	$FL_IN	64-bit input data for the function
string	$KE	64-bit subkey

Return values

string 64-bit output data

Note: This method does the opposite of the flinv() method.

Definition at line 350 of file Camellia.php.

References fpoirotte\Cryptal\DefaultAlgorithms\Camellia\$k2.

static fpoirotte\Cryptal\DefaultAlgorithms\Camellia::flinv	(	$FLINV_IN,
		$KE
	)

staticprotected

Inverse Feistel function (per RFC 3713)

Parameters

string	$FLINV_IN	64-bit input data for the function
string	$KE	64-bit subkey

Return values

string 64-bit output data

Note: This method does the opposite of the fl() method.

Definition at line 377 of file Camellia.php.

References fpoirotte\Cryptal\DefaultAlgorithms\Camellia\$k2.

fpoirotte\Cryptal\DefaultAlgorithms\Camellia::getBlockSize ( )

Get the block size, in bytes.

Return values

int	Required size for each block. Might be zero in case the given cipher/mode combination does not use blocks.

Implements fpoirotte\Cryptal\Implementers\CryptoInterface.

Definition at line 475 of file Camellia.php.

Referenced by fpoirotte\Cryptal\DefaultAlgorithms\Camellia\decrypt(), and fpoirotte\Cryptal\DefaultAlgorithms\Camellia\encrypt().

fpoirotte\Cryptal\DefaultAlgorithms\Camellia::getCipher ( )

Get the cipher used by this particular instance.

Return values

CipherEnum Cipher in use by this instance.

Implements fpoirotte\Cryptal\Implementers\CryptoInterface.

Definition at line 480 of file Camellia.php.

fpoirotte\Cryptal\DefaultAlgorithms\Camellia::getIVSize ( )

Get the size of the Initialization Vector, in bytes.

Return values

int	Required size for the Initialization Vector. Might be zero in case the given cipher/mode combination does not require an initialization vector.

Implements fpoirotte\Cryptal\Implementers\CryptoInterface.

Definition at line 470 of file Camellia.php.

fpoirotte\Cryptal\DefaultAlgorithms\Camellia::getKey ( )

Get the key used by this particular instance.

Return values

string Key in use by this instance.

Implements fpoirotte\Cryptal\Implementers\CryptoInterface.

Definition at line 485 of file Camellia.php.

static fpoirotte\Cryptal\DefaultAlgorithms\Camellia::rotateLeft	(	$value,
		$n
	)

staticprotected

Perform a left rotation operation.

Parameters

string	$value	Big-endian string whose bits will be left-rotated
int	$n	Number of bits to rotate to the left

Return values

string The result from rotating $n bits from $value

Definition at line 126 of file Camellia.php.

static fpoirotte\Cryptal\DefaultAlgorithms\Camellia::sbox	(	$n,
		$x
	)

staticprotected

Retrieve the sbox value at a given index.

Parameters

int	$n	A number between 1 and 4 indicating the sbox from which the resulting value will be taken.
string	$x	A single character indicating the index in the sbox whose value should be returned.

Return values

string A single character: the value for the given sbox and index.

Definition at line 286 of file Camellia.php.

fpoirotte\Cryptal\DefaultAlgorithms\Camellia::scheduleKeys ( $key )

protected

Perform key scheduling.

Parameters

string $key The key to schedule.

Returns: This method does not return any value. Instead, several intermediate values are stored into the instance so that encryption/decryption operations may then take place.

Definition at line 147 of file Camellia.php.

References fpoirotte\Cryptal\DefaultAlgorithms\Camellia\$k, fpoirotte\Cryptal\DefaultAlgorithms\Camellia\$k2, fpoirotte\Cryptal\DefaultAlgorithms\Camellia\$ke, fpoirotte\Cryptal\DefaultAlgorithms\Camellia\$ke2, fpoirotte\Cryptal\DefaultAlgorithms\Camellia\$kw, and fpoirotte\Cryptal\DefaultAlgorithms\Camellia\$kw2.

Referenced by fpoirotte\Cryptal\DefaultAlgorithms\Camellia\__construct().

fpoirotte\Cryptal\DefaultAlgorithms\Camellia::xcrypt	(		$m,
		array	$k,
		array	$ke,
		array	$kw
	)

protected

Internal encryption/decryption routine.

Parameters

string	$m	A block of data to encrypt or decrypt.
array	$k	Subkeys used for the operation
array	$ke	Subkeys used by the Feistel structure
array	$kw	Subkeys used for whitening

Return values

string Encrypted/decrypted block

Note: Whether this method is actually encrypting/decrypting data is determined purely by the values of $k, $ke and $kw.

Definition at line 411 of file Camellia.php.

Referenced by fpoirotte\Cryptal\DefaultAlgorithms\Camellia\decrypt(), and fpoirotte\Cryptal\DefaultAlgorithms\Camellia\encrypt().

The documentation for this class was generated from the following file:

src/Cryptal/DefaultAlgorithms/Camellia.php
